.lvl Objects

For level .objlib files, a .lvl Object roughly corresponds to a regular (non-boss) sub-level in the game. In some cases, a .lvl Object is part of a regular sub-level or boss section. Each .lvl Object is made up of one or more patterns called ".leaf Objects". Sample loops with volume envelopes and one-off SFX can be defined in a .lvl Object.

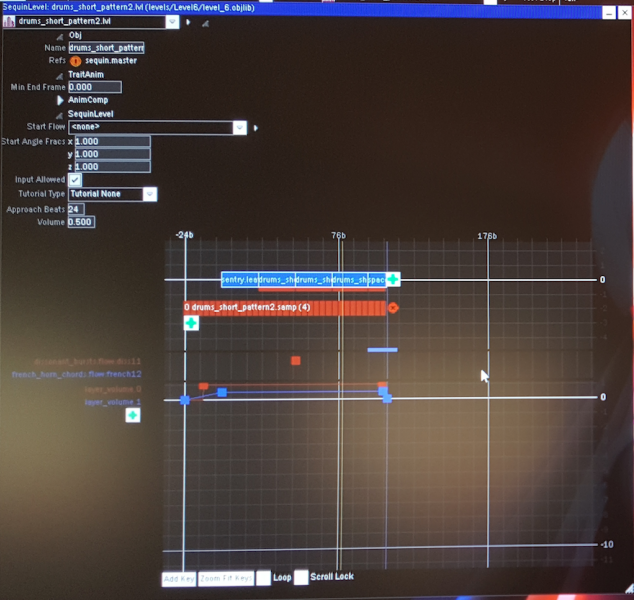

Here is a screenshot of Drool's Editor showing the .lvl Object named drums_short_pattern2.lvl, from levels/Level6/level_6.objlib.

screenshot of Drool's Editor showing the .lvl Object named drums_short_pattern2.lvl

Each sequin .objlib file contains a .lvl Object named root.lvl, which is usually used to define a sequence of animations.

Parameter List

The following is a list of known parameters belonging directly to a .lvl Object.

Value (little-endian) Parameter Name Meaning
e04f3144 layer_volume Controls the volume of a sample loop in a .lvl Object. The allowed values for volume \(A\) are: \(A \in \mathbb{R} \vert 0 \leq A \leq 1 \).

Format

Length Data Type Meaning
4 int32 Unknown
4 int32 Unknown
4 int32 Unknown
4 int32 Unknown

Approach Animation Definition

Unknown

Main Definition

Length Data Type Meaning
4 N/A Section marker. 3c8efb12 = Unknown

Sequencer Objects section

Length Data Type Meaning
4 int32 Number of Sequencer Objects in this object

See Sequencer Objects for the format of each Sequencer Object.

.leaf Sequence section

Unknown

Loops section

Unknown

Length Data Type Meaning
1 bool Unknown
4 float32 Unknown
4 int32? Unknown
4 int32? Unknown
variable string Unknown
1 bool Unknown
17 string Unknown
12 vector3f Unknown
